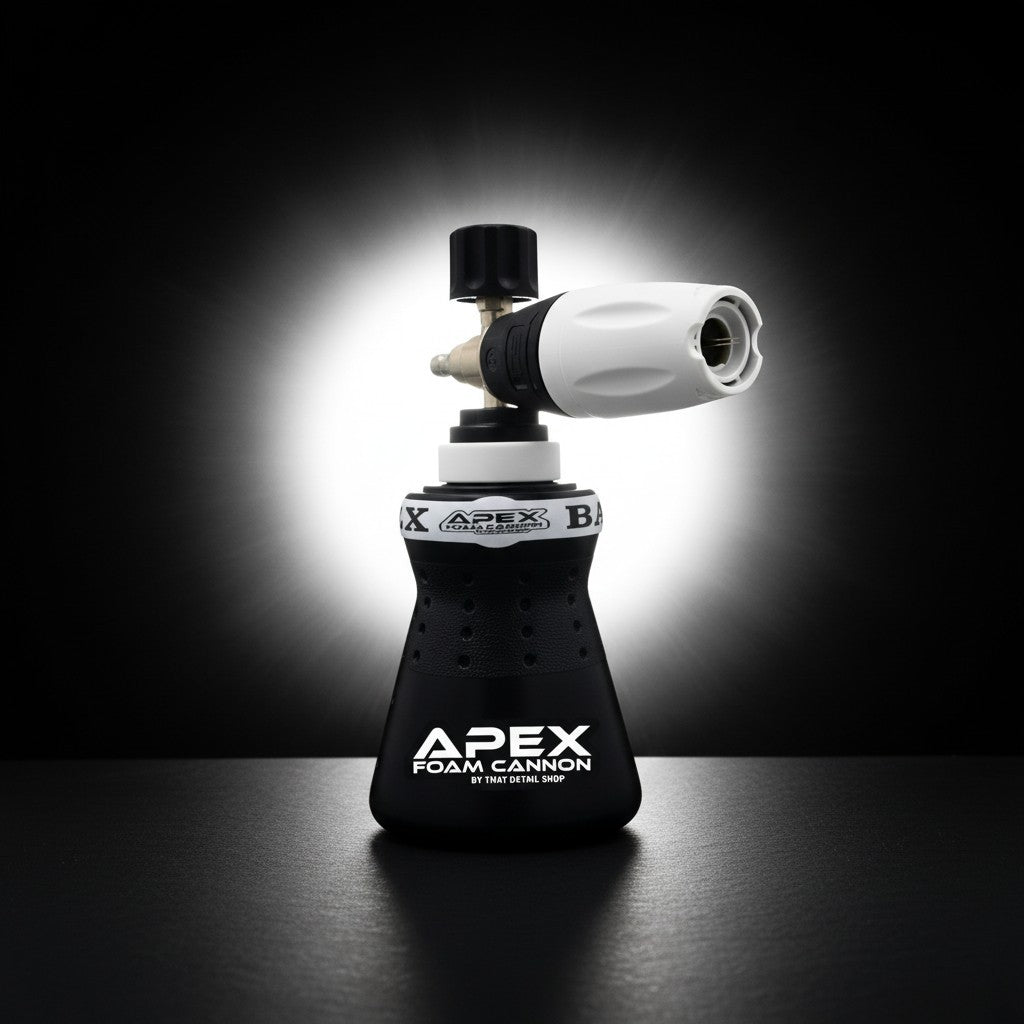

TDS Apex Foam Cannon

TDS Apex Foam Cannon Product Description

A foam cannon should do more than make thick foam. It should let you apply product efficiently, stay upright, pull soap consistently, adjust easily, and hold up through repeated use. The TDS Apex Foam Cannon brings those details together in one complete, ready-to-use setup.

At the center of Apex is our three-part foam filter, built with 304 stainless steel components surrounding a dense foam filtration element. This upgraded design helps Apex produce thick, clinging foam while still allowing smooth, consistent soap-and-water mixing and reliable operation through the cannon.

Apex is also built around efficient, repeatable chemical application. The 1-liter bottle features a precision-marked view window with accurate measurement markings, making it easier to repeat proven mixtures or calculate Panel Impact Ratio (PIR) for detailers who prefer to measure the actual chemical concentration reaching the vehicle.

A 1.1 mm stainless steel orifice comes preinstalled for many consumer electric and lower-flow pressure washers, while an additional 1.25 mm stainless steel orifice is included for higher-flow machines. The wide-mouth HDPE bottle has a broad, stable base, and the platinum-cured silicone intake tube with weighted pickup helps maintain chemical draw as the bottle is tilted or the product level gets low.

Key Features:

• Three-part foam filtration system with 304 stainless steel components
• Dense foam filter helps produce thick foam while maintaining smooth soap-and-water mixing
• Precision-marked view window for accurate, repeatable chemical mixing
• Useful for detailers calculating Panel Impact Ratio (PIR)
• 1.1 mm stainless steel orifice preinstalled with 1.25 mm option included
• 1-liter wide-mouth HDPE bottle with broad, stable base
• Platinum-cured silicone intake tube with weighted pickup
• Adjustable chemical draw and narrow-to-wide rotating fan pattern
• Standard 1/4-inch stainless steel quick-connect fitting

Choosing the Correct Orifice:

• 1.1 mm: Preinstalled and generally recommended for many consumer electric or lower-flow pressure washers
• 1.25 mm: Included for machines that operate better with a larger opening and greater water flow

Foam output depends on pressure-washer flow, water quality, shampoo, dilution, and cannon adjustment. If your machine pulses, struggles, or appears restricted with the 1.1 mm orifice, switch to the included 1.25 mm option and follow your pressure washer manufacturer's operating requirements.

How to Use:

• Add automotive shampoo according to the chemical manufacturer's recommended dilution or your preferred tested mixture
• Use the marked view window to accurately measure product and water
• Add water slowly, then secure the foam cannon head to the bottle
• Connect Apex to a compatible 1/4-inch pressure-washer quick-connect system
• Adjust the top knob for chemical draw and rotate the front nozzle for the desired fan width and orientation
• Apply foam evenly and allow it to dwell without drying on the surface
• Rinse thoroughly before beginning the contact wash

Care and Maintenance:

• Empty and rinse the bottle, intake tube, and weighted pickup after use
• Run clean water through the cannon to flush remaining soap from the internal system
• Periodically inspect the filter, orifice, one-way valve, O-rings, and pickup assembly for buildup or wear
• Store clean, drained, and protected from freezing temperatures

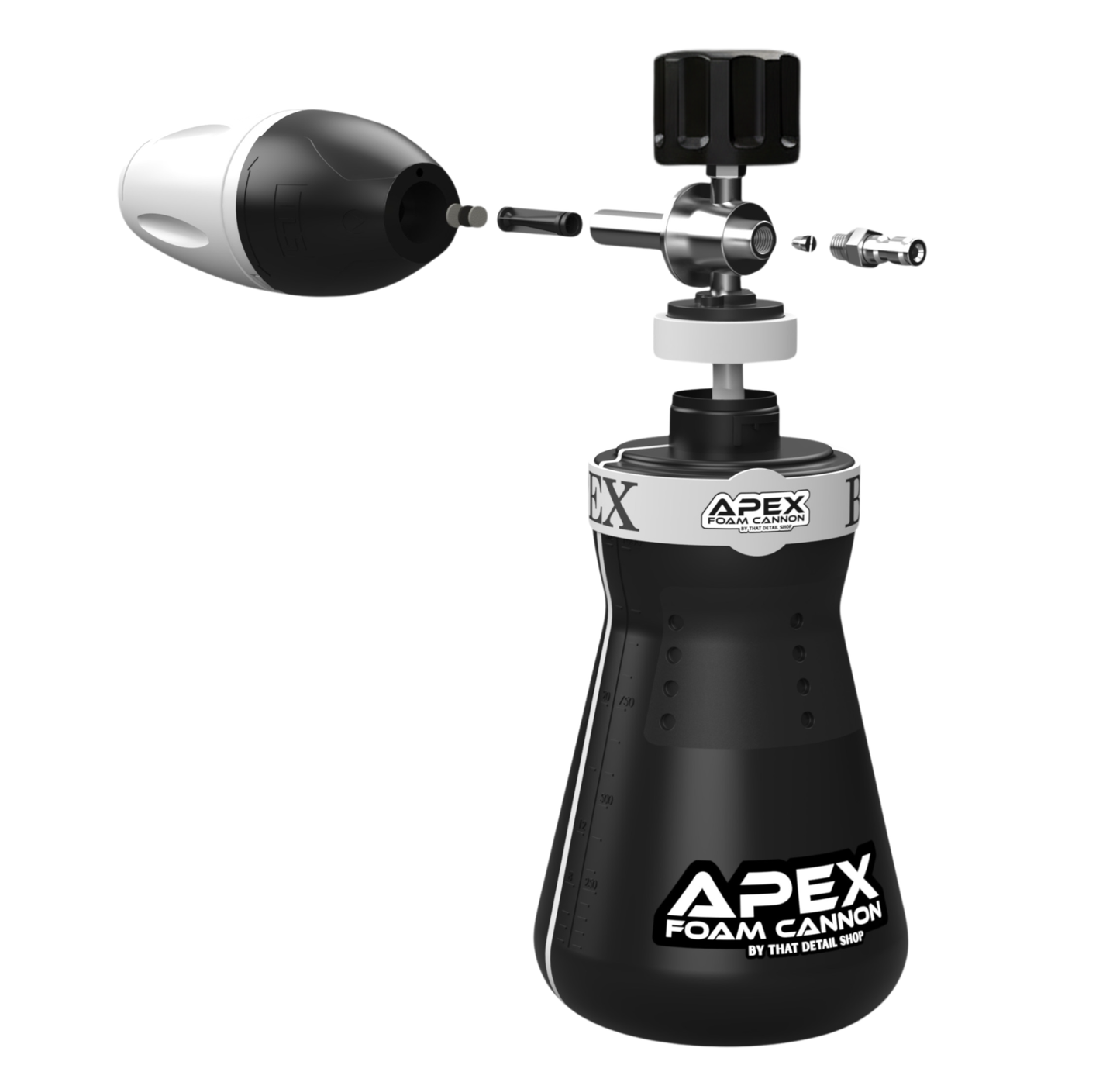

What's Included:

• 1 x TDS Apex Foam Cannon head
• 1 x 1-liter wide-mouth HDPE bottle with precision measurement window
• 1 x Platinum-cured silicone intake tube with weighted pickup
• 1 x Three-part foam filtration system
• 1 x 1.1 mm stainless steel orifice, preinstalled
• 1 x 1.25 mm stainless steel orifice
• 1 x Traditional stainless steel mesh filter
• 2 x Replacement one-way valves
• 1 x Stainless steel quick-connect fitting
• 1 x TDS sticker

Specs:

• Product: TDS Apex Foam Cannon
• Brand: That Detail Shop
• Bottle Capacity: 1 liter
• Bottle Material: HDPE #2 plastic
• Connection: Standard 1/4-inch pressure-washer quick connect
• SKU: TDS-FC-APEX-V1
• Pressure washer required

Warranty:

• 365-day limited warranty for consumer use
• 6-month limited warranty for professional use of five or more vehicles per week
• 30-day money-back guarantee

Goes Great With:

Pair Apex with Yum Wash for regular maintenance washes, Detail Co. Decon Shampoo when stronger cleaning is needed, and a premium drying towel to finish the vehicle after rinsing.
